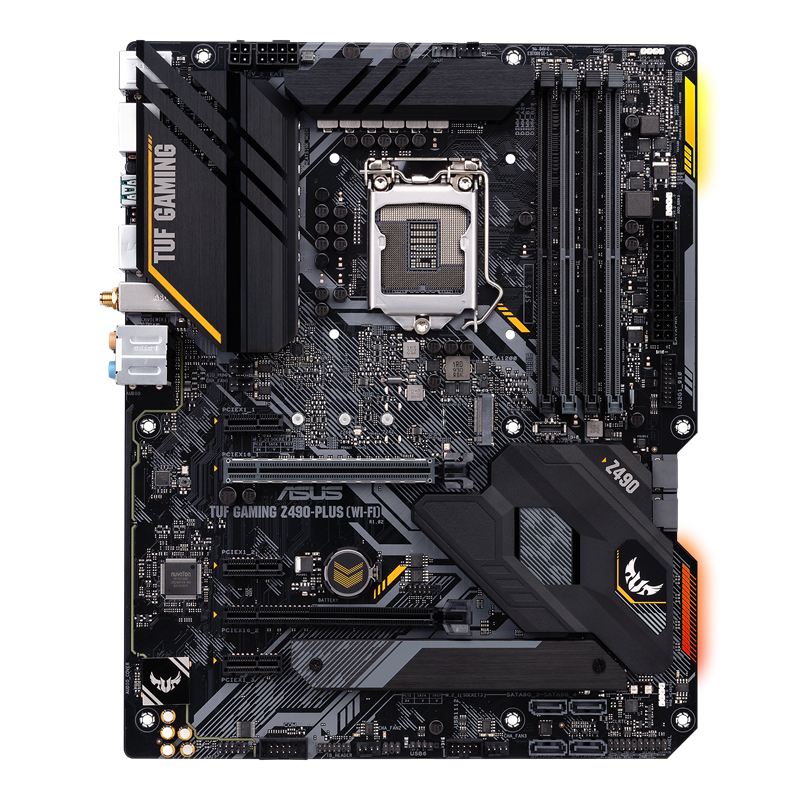

TUF GAMING Z490-PLUS (WI-FI)
* Refer to www.asus.com for CPU support list.,Build in Intel® Socket 1200for 10 th Gen Intel ® Core ™ , Pentium ® Gold and Celeron ® Processors,Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**,**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.,Supports Intel® 14nm CPU
Build in Intel® Z490
* 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).,4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory,OptiMem II,Dual Channel Memory Architecture,Supports Intel® Extreme Memory Profile (XMP)
**Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.,1 x DisplayPort 1.4 **,1 x HDMI 1.4b,*Graphics specifications may vary between CPU types.,Integrated Graphics Processor
Multi-GPU Support
Supports AMD 2-Way CrossFireX Technology
Expansion Slots
Intel® 10th Gen Processors ,Intel® Z490 Chipset,3 x PCIe x1,1 x PCIe 3.0 x16 (x4 mode),1 x PCIe 3.0 x16 (x16 mode)
1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)* 1 ,1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)* 2 ,Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports,Intel® Z490 Chipset : ,6 x SATA 6Gb/s port(s),Support Raid 0, 1, 5, 10,Intel® Rapid Storage Technology supports,Intel® Optane™ Memory Ready
Intel® I219-V 1Gb Ethernet,TUF LANGuard
Wireless Data Network
Intel® Wi-Fi 6 AX201,2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO,Supports up to 2.4Gbps max data rate,Supports CNVI interface,Supports dual band frequency 2.4/5 GHz,Supports channel bandwidth: HT20/HT40/HT80/HT160
Bluetooth v5.1*,*BT 5.1 function will be ready in Windows 10 build 19041 or later.
Realtek® ALC S1200A7.1 Surround Sound High Definition Audio CODEC,- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback,- Audio Shielding,- Dedicated audio PCB layers,- Audio Cover,- Premium Japanese audio capacitors,Audio Feature :,- Optical S/PDIF out port(s) at back panel,* Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
2 x USB 3.2 Gen 2 port(s)(1 + Type-A +1 + USB Type-C ® ),Front USB Port ( Total 6 ),1 x USB 3.2 Gen 2 front panel connector port(s)(1 x USB Type-C ® ),1 x USB 3.2 Gen 1 port(s)(2 x Type-A),1 x USB 2.0 port(s)(2 x Type-A),1 x USB 2.0 port(s)(1 x Type-A),Rear USB Port ( Total 6 ),4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
Software Features
ASUS Exclusive Software
Armoury Crate
– Aura Sync
AI Suite 3:
– Performance And Power Saving Utility
Turbo V Evo
EPU
Digi+ VRM
Fan Xpert 4
System information
– EZ update
AI Charger
ASUS Turbo LAN
DTS Custom for GAMING Headsets
Norton Anti-virus software (Free Trial for 90 days)
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
ASUS Special Features
ASUS TUF PROTECTION
– ASUS DIGI+ VRM (- Digital power design with Dr. MOS)
– ASUS Enhanced DRAM Overcurrent Protection
– ASUS ESD Guards
– TUF LANGuard
– ASUS Overvoltage Protection
– ASUS SafeSlot
– ASUS Stainless-Steel Back I/O
ASUS Q-Design
– ASUS Q-DIMM
– ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– ASUS Q-Slot
ASUS Thermal Solution
– Stylish heatsink
ASUS EZ DIY
– Procool
AURA Sync
– Standard RGB headers
– Addressable Gen 2 RGB header
Back I/O Ports
4 x USB 3.2 Gen 1 (blue) Type-A,2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C ® ),1 x PS/2 keyboard/mouse combo port(s),1 x DisplayPort,1 x HDMI,1 x LAN (RJ45) port(s),1 x Optical S/PDIF out,5 x Audio jack(s),1 x ASUS Wi-Fi Module
Internal I/O Ports
1 x COM port header,1 x USB 3.2 Gen2 connector support additional 1 USB ports(20-pin, Type-C),1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s),1 x USB 2.0 connector(s) support(s) additional 1 USB 2.0 port(s),2 x M.2 Socket 3,1 x Thunderbolt header(s),1 x CPU Fan connector(s),1 x CPU OPT Fan connector(s),3 x Chassis Fan connector(s),1 x AIO_PUMP connector,2 x Aura RGB Strip Headers,1 x Addressable Gen 2 header(s),6 x SATA 6Gb/s connector(s),1 x 24-pin EATX Power connector(s),1 x 8-pin ATX 12V Power connector(s),1 x 4-pin ATX 12V Power connector(s),1 x Front panel audio connector(s) (AAFP),1 x System panel(s) (Chassis intrusion header is inbuilt),1 x Clear CMOS jumper(s),1 x COM port header,1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
Accessories
1 x Wi-Fi moving antenna,2 x SATA 6Gb/s cable(s),1 x ASUS Fan Holder,User´s manual,I/O Shield,1 x M.2 Screw Package,1 x Supporting DVD,1 x TUF GAMING Sticker,1 x TUF Certification card(s),2 x SATA 6Gb/s cable(s)
TUF GAMING Z490-PLUS (WI-FI)
TUF Gaming Z490-Plus (WiFi) distills essential elements of the latest Intel® platform and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive set of cooling options, this motherboard delivers rock-solid performance with unwavering gaming stability. When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, best compatibility, and complementary aesthetics from components to case.
Elite Performance for Gamers and Enthusiasts
- Display Port
- HDMI Port
- USB 3.2 Gen 2 Type-C™
- USB 3.2 Gen 2
- USB 3.2 Gen 1
- Intel I219-V LAN
Turbo LAN Utility - Intel ® Wi-Fi & BT 5.1
- Audio
- 2 x PCIe X16 Slots
Intel ® Rapid Storage Technology for CPU-attached
Intel PCIe Storage
2-way CrossFireX™
ASUS SafeSlot - Realtek ® S1200A
Exclusive DTS Custom for
GAMING Headsets TUF Gaming Audio Cover Audio Shielding
Dedicated audio PCB layers
Premium Japanese audio capacitors - ProCool Connector
- 2 x RGB Strip Headers
- DrMOS
- AURA Sync
- DDR4 4600 (O.C.) MHz
ASUS OptiMem II - Addressable Gen 2 RGB header
- Intel ® Socket LGA1200
- 32Gb/s M.2 x4 PCIe & SATA mode
・Intel ® Optane Memory Ready - 1 x Front USB 3.2 Gen1 port
- 1 x Front USB 3.2 Gen2 Type-C™port
- 6 x SATA 3.0 ports
- Intel ® Z490 Chipset
- 32Gb/s M.2 x4 PCIe & SATA mode ・Intel ® Optane Memory Ready
- 1 x Thunderbolt Header
UP to 40% color
Dressed in a professional attire, the Prime X570 series cater to users with serious pursuits in mind, who prefer to put their Ryzen™ processors to more productive use. Prime X570, known for its all-around specs and ASUS signature features, includes a wide range of tuning options for accessible performance.
* to color .comjiojio
ROCK-SOLID PERFORMANCE
With upgraded power delivery and comprehensive cooling options to fuel the latest Intel® CPUs, plus support for faster memory and storage, TUF Gaming Z490-Plus (Wi-Fi) is the perfect foundation for your next high-core-count battle rig.
