ROG STRIX Z590-F GAMING WIFI
Intel ® Z590 LGA 1200 ATX motherboard with PCIe 4.0, 14+2 teamed power stages, Two-Way AI Noise Cancelation, AI Overclocking, AI Cooling, AI Networking, WiFi 6E (802.11ax), Intel ® 2.5 Gb Ethernet, four M.2 slots with heatsinks, USB 3.2 Gen 2×2 USB Type-C ® , SATA and Aura Sync RGB lighting
- Ready for 11th Gen Intel ® Core™ processors & 10th Gen Intel ® Core™, Pentium ® Gold and Celeron ® Processors
- Optimal Power Solution: 14+2 power stages with ProCool II power connector, high-quality alloy chokes and durable capacitors to support multi-core processors
- Optimised Thermal Design: VRM and aluminum I/O heatsink, L-shaped heatpipe, four onboard M.2 heatsinks, and an M.2 backplate for the PCIe 4.0 M.2 slot
- High-performance Networking: On-board Intel ® WiFi 6E AX210 (802.11ax) and Intel ® 2.5 Gb Ethernet with ASUS LANGuard
- Best Gaming Connectivity: Supports HDMI™ 2.0 and DisplayPort 1.4 output, four M.2 slots, as well as USB 3.2 Gen 2×2 USB Type-C ®
- Intelligent Control: ASUS-exclusive AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise Cancellation to simplify setup and improve performance
- DIY Friendly Design: M.2 Q-Latch, pre-mounted I/O shield, BIOS FlashBack™, Clr CMOS button, and FlexKey
- Unmatched Personalisation: ASUS-exclusive Aura Sync RGB lighting, including RGB header and Gen 2 addressable headers
- Industry-leading Gaming Audio: ALC4080 with Savitech SV3H712 amplifier, along with DTS ® Sound Unbound and Sonic Studio III
- Renowned Software: Bundled 60 days AIDA64 Extreme subscription and intuitive UEFI BIOS dashboard with integrated MemTest86
ROG Strix Z590-F Gaming WiFi motherboard is designed with boosted power delivery and optimised cooling to cope with the demands of powerful 11 th Generation Intel ® Core™ Rocket Lake processors. Along with the latest Intel ® Wi-Fi 6E and PCI Express ® 4.0 M.2 for superfast transfer speeds and storage, Strix Z590-F Gaming WiFi features Two-Way AI Noise Cancelation to ensure clear communication in any scenario. Strix Z590-F Gaming WiFi is unmistakably ROG with its futuristic design elements, iridescent ROG logo, monochrome finish and Aura lighting that will give your build a subtle but vibrant look.
Performance
Gaming Immersion
Connectivity
Built for Performance Gaming
1 ProCool II
Power Connector
1 Intel ® Socket LGA1200 for
11 th & 10 th Gen Intel ® Core™
processors
- 2 x PCIe 4.0 x16 SafeSlots
(x16, x8/x4) [CPU] - 1 x PCIe 3.0 x16 slot (x4)
[Chipset]
14+2 Power Stages
- Dual Channel
- Optimem II
- 1 x M.2 2242-22110 (PCIe4.0 x4)
- 1 x M.2 2242-22110 (PCIe4.0 x4)
- 1 x M.2 2242-22110 (PCIe3.0 x4)
- 1 x M.2 2242-2280 (PCIe 3.0 x4 & SATA)
Comprehensive Cooling
Integrated I/O & VRM Heatsink
Four M.2 Heatsinks
VRM Heatsink Fan Header
AIO Pump Header
Water Pump Header
Multi-GPU SLI/CFX support
- 2 x PCIe 3.0 x16 (CPU)
- 1 x PCIe 3.0 x16 (PCH, at x4 mode)
- 3 x PCIe 3.0 x1 (PCH)
SupremeFX S1220A CODEC
- Impedance sense
- High quality output and input
- SupremeFX shielding
- Dual OP amplifiers
Sonic Studio III
Sonic Studio Virtual Mixer
Sonic Radar III
DTS ® Sound Unbound
Multiple 4-pin PWM Fan Headers
TOTAL GAMING IMMERSION
I/O Zone Aura Lighting
ALC4080 + Savitech SV3H712 AMP
- Impedance sense
- High quality output and input
- SupremeFX shielding
Sonic Studio III + Sonic Studio Virtual Mixer
Sonic Radar III
DTS ® Sound Unbound
Two-Way AI Noise Cancelation
3 x 3-pin Addressable RGB headers
1 x 4-pin Aura RGB header
Chipset Zone Aura Lighting
Full Connectivity
1 x DisplayPort 1.4
Clear CMOS Button
BIOS FlashBack™ Button
4 x USB 3.2 Gen 1 Ports
2 x USB 2.0 Ports
3 x USB 3.2 Gen 2 Ports
- 2 x Type-A + 1 x Type-C ®
1 x USB 3.2 Gen 2×2 Port
1 x Intel I225-V 2.5Gb Ethernet
Intel ® Wi-Fi 6E AX210
1x Optical S/PDIF OUT
5 x Audio Jacks
1 x USB 3.2 Gen 2 Type-C ® Port
2 x USB 3.2 Gen 1 Ports
All-round Performance
ROG Strix Z590-F Gaming WiFi is armed with up-rated power delivery and optimised cooling to enable top-tier performance for gaming. Fully equipped with intelligent controls for easy management of overclocking, cooling and networking settings, Strix Z590-F Gaming WiFi also features Two-Way AI Noise Cancelation for crystal-clear in-game communication.
Power Design
Cooling
Intelligent Control
Power Design
Digital power control and an array of power stages provide the muscle needed to control the latest Intel CPUs.
Teamed Power Stages
14+2 power stages combine high-side and low-side MOSFETS and drivers into a single package, delivering the power and efficiency that the latest Intel processors demand.
Alloy Chokes and Capacitors
Superior chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.
ProCool II
Power Connector
The ASUS ProCool II socket is built to tight specifications to ensure flush contact with the PSU power lines. Metal armor improves heat dissipation, and lower impedance helps prevent hotspots and improves reliability.
Digi+
Power Control
The built-in Digi+ voltage-regulator module (VRM) is one of the finest in the industry, ensuring ultra-smooth and clean power delivery to the CPU.
Six-Layer PCB
The PCB design quickly dissipates heat around the VRM to improve overall system stability and provide the CPU with more overclocking headroom.
Cooling Innovation
Cooler By Design
Cooling Innovation
Integrated I/O Cover and VRM Heatsinks
Connected by an L-shaped heat pipe, the two VRM heatsinks feature strakes to increase surface area for improved heat dissipation. Both heatsinks also integrate a high-surface-area aluminum I/O cover which helps dissipate heat.
Thermal Pads
High-quality thermal pads efficiently transfer heat from the inductor and phase array to the heatsink.
M.2 Heatsinks
The M.2 heatsinks keep the M.2 SSD at optimum operating temperature for consistent performance and reliability.
M.2 Backplate
An integrated M.2 backplate helps ensure that high-performance drives deliver peak performance, even when airflow is restricted.
VRM Heatsink With 8mm Heatpipe
An active cooling VRM heatsink provides a large contact area for the MOSFETs and chokes, and a heatpipe enables more efficient cooling of the west and north VRM heatsink for better performance and wattage resistance.
Stacked-fin Heatsink
Closely-packed, multi-layered fins maximize the surface area to speed heat dissipation from the controller, improving cooling.
Thermal Pad
A high-quality thermal pad helps transfer heat from the inductor and phase array to the heatsink.
Backplate
A backplate on the rear of the board helps balance MOSFET temperatures while providing structural reinforcement.
COOLER BY DESIGN
ROG Strix Z590 motherboards feature comprehensive cooling options that are configurable via Fan Xpert 4 or the UEFI BIOS.
CPU Fan Header
A dedicated pair of PWM/DC fan headers for CPU coolers
AIO Pump Fan Header
A dedicated PWM/DC header for self-contained water-cooling setups
Water Pump Header
A dedicated header that can supply over 3 amps to high-performance PWM or DC water pumps
M.2 Heatsink
Keeps the M.2 SSD at the optimum operating temperature for consistent performance and reliability
M.2 Backplate
Helps ensure that high-performance drives deliver peak performance, even when airflow is restricted
4-Pin PWM/DC Fan Headers
Each header supports auto-detection of PWM or DC fans
*Supports ASUS HYDRANODE
TWO-WAY AI NOISE CANCELATION
AI Overclocking
AI Cooling
AI Networking
TWO-WAY AI NOISE CANCELATION
This powerful ASUS-exclusive utility leverages a massive deep-learning database to reduce background noise from the microphone* and incoming audio while preserving voices. Distracting keyboard clatter, mouse clicks and other ambient noises are removed so you can hear and be heard with perfect clarity while gaming or during calls.
*A splitter cable is necessary when using a 3.5 mm headset.
500M Deep-learning Database
Audio Input/output
High Fidelity
Minimal Performance Impact

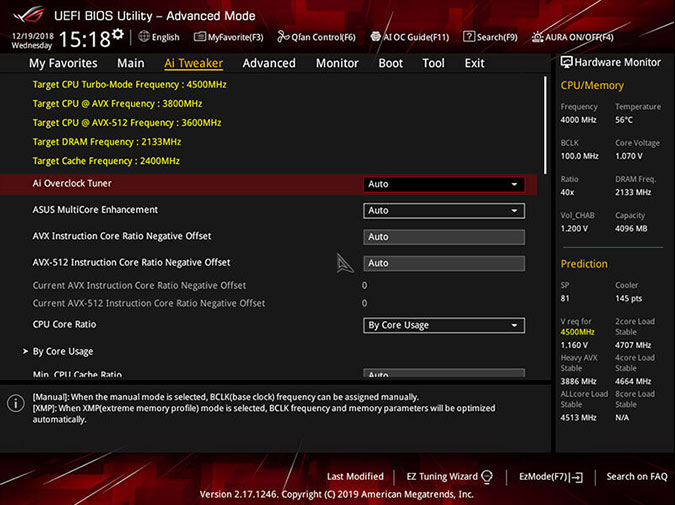

AI Overclocking
ROG AI Overclocking is an intelligent utility that helps you get the most out of your build by automatically profiling your CPU and cooling system to predict optimal voltage and frequency settings.
Accessible via the AI Suite software in Windows or directly through the UEFI, the intuitive AI Overclocking user interface enables users of all levels. A range of customisable settings are available for seasoned overclockers, and an auto-tuning option is available for beginners.
AI OVERCLOCKING AT A GLANCE
Designed by Experts
At the heart of AI Overclocking is a proprietary algorithm developed by ROG R&D engineers who worked with world-renowned overclockers to create a tool for users of all levels.
Predictive Edge
The algorithm analyzes your CPU and cooling system and, based on what it finds, predicts optimal settings. The software then automatically applies these settings to guide the clocking process, balancing frequency and voltage.
Real-time Adjustments
The software monitors workload, system temperature, fan speed and power draw at one-minute intervals, and makes real-time adjustments to ensure ongoing optimal performance.
Turn on your PC and put on a load on the processor to get a baseline reading of your CPU, cooling system capabilities.
Learn more
AI Overclocking Guide
The AI Overclocking Guide provides detailed information and instructions about how to tune your system manually. It can be accessed by hitting the F11 hotkey.
Core Group Loading
For high-core count processors like the Z590, AI Overclocking lists data according to core group. This gives you adaptive control based on the status of core groups, and it provides target frequency and voltage estimations needed for manual tuning.
AI Overclocking in AI Suite
Onboard intelligence lets you automated overclocking with full, flexible control available via 5-Way Optimisation within AI Suite (in Windows).
Prediction
AI OC Guide
Per-core Tuning
One-click AI OC
Prediction
AI OC monitors system vitals like temperatures, fan speeds and power draw to estimate overclo cking performance.
AI OC Guide
AI OC monitors system vitals like temperatures, fan speeds and power draw to estimate overclo cking performance.
Per-core Tuning
AI OC monitors system vitals like temperatures, fan speeds and power draw to estimate overclo cking performance.
One-click AI OC
AI OC monitors system vitals like temperatures, fan speeds and power draw to estimate overclo cking performance.
AI Cooling
ASUS AI Cooling technology automatically manages and controls motherboard-connected fans to ensure optimal settings based on current system load and temperature.
Self-Adaptive Fan Tuning
CPU temperature detection
AI Cooling detects CPU temperatures and uses a proprietary algorithm to calculate the lowest fan speed required to effectively cool the system and keep fan noise down.
Automated optimisation
Under stable system loads, the software automatically lowers fan* speed to the optimal setting, decreasing fan noise without compromising performance. *Fans need to be connected to the following headers for AI Cooling control: CPU_FAN / CPU_OPT / CHA_FAN / M.2_FAN / H_AMP / RAD_FAN
Ongoing monitoring
AI Cooling continues to monitor the system and adjust fan speed based on current load.
- Automatic Tuning
- Manual Tuning
One-click activation
AI Cooling can easily be activated via the Fan Xpert 4 dashboard in ASUS AI Suite 3. Once activated, it will override all manual controls.
Fan speed references
For those who prefer manual control, AI Cooling provides reference points on a graph, detailing fan speed in relation to temperature to provide a guide for fan settings.
AI Networking
The proprietary ROG GameFirst VI utility is designed to help all users — beginners, experts, and everyone in between — optimise network settings to ensure smooth online gameplay. New to this generation, GameFirst VI features AI-enhanced identification and boost technologies to ensure faster and smarter network optimisation.
How It Works
Identification
GameFirst VI analyzes usage patterns and the digital signatures of your applications and compares them to a database of over 200,000 apps.
Boost
GameFirst VI intelligently switches application priority and adjusts bandwidth, depending on the situation. When gaming, it accelerates and prioritizes game packets to give you supersmooth online gameplay ― even when you’re streaming high-quality video or transferring large files.
Visualization
An intuitive graph provides an overview of real-time network status. Simply click on the tab to view the current bandwidth usage of each application, geolocation status of each network connection, or an analysis of the WiFi channels.
WHAT IT DOES
ADAPTIVE INTELLIGENCE
GameFirst VI notes what you’re currently doing and adjusts bandwidth accordingly to ensure smooth online experiences, even when multitasking.
GAMING FIRST MODE
Gaming First mode leverages a massive application database and an analysis of your frequently used apps to prioritize gaming network traffic. This reduces jitter and decreases ping to give you lag-free online gaming.
Network Insight
WIFI Quick Assist analyzes network information and generates a graph to give you a clear picture of current network status. In addition, when paired with an ROG router, you can scan your WiFi network to find the best channel and use Game Boost to prioritize gaming devices and packets.
LEADING CONNECTIVITIY
ROG Strix Z590-F Gaming WiFi includes the latest connectivity for supersmooth online experiences and blisteringly fast large file transfers. Superior audio performance gives you a massive advantage, allowing you to pick up on the smallest audio cues for a completely immersive gaming experience.
Storage & Memory
Networking
Audio
Optimem II
ROG Strix Z590-F Gaming WiFi supports up to 128 GB DDR4 memory across four slots. OptiMem II technology improves trace layout to significantly reduce vias and crosstalk, enhancing memory stability and compatibility while giving memory kits higher frequency margins.
PCIe 4.0-Ready
ROG Strix Z590-F Gaming WiFi features four onboard M.2 slots, two of which support the latest PCIe 4.0 standard to provide maximum storage flexibility and the fastest data speeds available with the latest Intel processors. An M.2 backplate helps deal with the heat generated by the PCIe 4.0 SSDs. In addition, three of the M.2 slots support up to a 22110 socket and NVM Express ® RAID.
Intel WiFi 6E (802.11 ax)
Onboard WiFi 6E technology takes advantage of the newly available radio spectrum in the 6 GHz band. It provides up to three times the bandwidth of the 5 GHz band and up to seven 160 MHz bands to deliver ultrafast wireless networking speeds and improved capacity as well as better performance in dense wireless environments.
*WiFi 6E availability and features are dependent on regulatory limitations and co-existence with 5 GHz WiFi. Learn more about the ASUS WiFi 6 ecosystem.
Wi-Fi 6 AX201 (802.11 ax)
*speed may vary according to setup
Intel 2.5 Gb Ethernet
Onboard 2.5 Gb Ethernet gives your wired connection a boost, with up to a 2.5X improvement over standard Ethernet connections for faster file transfers, smoother lag-free gaming and high-res video streaming.
1 WiFi 6E Antenna
The antenna has two built-in transmitters and receivers to enable faster transmission speeds, and it supports the 2.4, 5 and 6 GHz bands.
2 Adjustable Design
Four-way positioning enables better signal reception.
3 Magnetic Base
A powerful magnetic base secures the antenna on the top or side of the PC case.
ROG SupremeFX
ROG SupremeFX is a unique blend of hardware and software that provides superior audio. In ROG Strix Z590-F Gaming WiFi, this combination features the ALC4080 codec with a Savitech amplifier to deliver pristine audio, increasing playback resolution from 192 kHz to 384 kHz and also decreasing distortion and reducing signal interference from surrounding components.
Audio Cover
Effective shielding against electromagnetic interference preserves the integrity of audio signals to ensure the best sound quality.
Audio-Line Shielding
Specially designed shielding blocks electromagnetic interference from the motherboard or add-ons.
Savitech SV3H712 Amplifier
The integrated Savitech amplifier greatly improves THD+N performance from 72 to 83 dB, resulting in cleaner, more pristine sound.
Premium Nichicon™ Audio Capacitors
High-quality Japanese-made components produce a warmer, more natural sound with exceptional clarity and fidelity.
PLAY YOUR OWN STYLE
Cyberpunk-inspired aesthetics are accentuated by bold slashes and cybertext on ROG Strix Z590-F Gaming WiFi. By pairing it with other products from the expansive ROG ecosystem, you can create a fully customized gaming setup that reflects your personal style.
Customization
DIY Friendly
Certified Compatibilty
Undeniably ROG Strix
ROG Strix Z590-F Gaming WiFi embodies the ROG spirit with its futuristic cyberpunk-inspired design elements and monochromatic colour palette. The ROG logo on the I/O heatsink is illuminated by Aura RGB LEDs and can be synced with other Aura-compatible hardware to create an eye-catching, unified look.
OUTSHINE THE COMPETITION
ROG Strix motherboards deliver sterling performance and superior aesthetics to outshine the competition. They also feature built-in ASUS Aura technology that enables full RGB lighting control and a variety of presets for embedded RGB LEDs as well as lighting strips connected to onboard RGB headers. In addition, all lighting can be easily synced with an ever-growing portfolio of Aura-capable ASUS hardware.
Static
Breathing
Strobing
Rainbow
Color cycle
Starry night
Music
Smart
ADDRESSABLE GEN 2 RGB HEADER
ROG Strix Z590-F Gaming WiFi’s Addressable Gen 2 RGB headers are now capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear.
M.2 Q-Latch
The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the drive and neatly eliminate traditional screws.
Clr CMOS Button
A quick press of the Clr CMOS button helps reset BIOS settings. It can also be used to reboot the PC if incorrect BIOS settings have been selected.
BIOS FlashBack™
BIOS FlashBack™ is the simplest and safest way to update BIOS. Simply drop the (UEFI) BIOS file onto a FAT32-formatted USB stick, and plug it into the USB BIOS FlashBack port and press the button. Updates can even be performed without having memory or a CPU installed.
FlexKey
FlexyKey makes it possible to redefine the role of the chassis reset button. Assignable options include quick Aura lighting control, booting directly into UEFI, or performing a safe boot to recover settings.
Pre-Mounted I/O Shield
The patented ROG I/O shield is finished in sleek matte black and comes pre-mounted, which further simplifies the process of installing the motherboard.
Certified Compatibility
ROG Strix motherboards undergo an extensive certification program to ensure the very best compatibility with the widest range of components and devices. For a smooth build process, refer to our list of guaranteed-compatible components. To help with memory upgrades, the list also includes a dedicated Qualified Vendor List (QVL)
The ROG Strix Ecosystem Awaits
Level up your game with ROG Strix. Enjoy complementary aesthetics, control and compatibility across AIO coolers, cases, peripherals, and much more. ROG offers more choices than any other brand.
ROG Gives You More
ROG-exclusive software utilities deliver intuitive audio tuning and gaming enhancements so you can configure your gaming build the way you want. Bundled third-party software like AIDA64 and MemTest86 allow you to benchmark individual components or the entire system.
