ROG STRIX B560-I GAMING WIFI
Intel ® B560 LGA 1200 Mini-ITX motherboard with PCIe 4.0, 8 teamed power stages, WiFi 6 (802.11ax), Realtek 2.5 Gb Ethernet, Two M.2 slots with one slot having a heatsink and M.2 backplate, Two-Way AI Noise Cancelation, USB 3.2 Gen 2×2 USB Type-C ® , SATA and Aura Sync RGB lighting
- Intel ® LGA 1200 socket: Ready for 11th Gen Intel ® Core™, 10th Gen Intel Core, Pentium ® Gold and Celeron ® processors
- Solid Power Solution: Teamed power stages with ProCool power connector, high-quality alloy chokes and durable capacitors to support multi-core processors
- Smooth Networking: On-board Intel ® WiFi 6 AX201 (802.11ax) and Realtek 2.5 Gb Ethernet with ASUS LANGuard
- Best Gaming Connectivity: Supports HDMI™ 2.0 and DisplayPort1.4 output, two M.2 slots, and USB 3.2 Gen 2×2 USB Type-C ®
- DIY Friendly Design: M.2 Q-Latch, pre-mounted I/O shield and Q-LED
- Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including RGB header and Gen 2 addressable header
- Industry-Leading Gaming Audio: SupremeFX S1220A codec with Savitech SV3H712 amplifier, along with Two-Way AI Noise Cancellation, DTS ® Sound Unbound and Sonic Studio III
- Renowned Software: Bundled 60 days AIDA64 Extreme subscription and intuitive UEFI BIOS dashboard
The ROG Strix B560-I Gaming WiFi motherboard packs boosted power delivery, innovative cooling features, and support for the latest superfast storage devices into the diminutive Mini ITX form factor. Load it up and enjoy 11 th Generation Intel ® Core™ processor performance that rivals full-size builds.
- Performance
- Cooling
- Gaming Immersion
- Connectivity
Built for Performance Gaming
Comprehensive Cooling
Total Gaming Immersion
Full Connectivity
POTENTIAL, REALISED
Robust power delivery and comprehensive cooling features ensure exceptional performance, while AI-powered enhancements optimise network settings and improve in-game communication — all to help you maximise the full potential of your rig.
- Power Design
- Cooling
- Intelligent Control
TEAMED POWER STAGES
6+2 power stages combine high-side and low-side MOSFETS and drivers into a single package, delivering the power and efficiency that the latest Intel processors demand.
ALLOY CHOKES AND CAPACITORS
Superior chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.
PROCOOL POWER CONNECTOR
The ASUS ProCool socket is built to exacting specifications to ensure flush contact with the PSU power lines, enabling lower impedance and better heat dissipation.
DIGI+ POWER CONTROL
The built-in Digi+ voltage-regulator module (VRM) is one of the finest in the industry, ensuring ultra-smooth and clean power delivery to the CPU.
EIGHT-LAYER PCB
The PCB design quickly dissipates heat around the VRM to improve overall system stability and provide the CPU with more overclocking headroom.

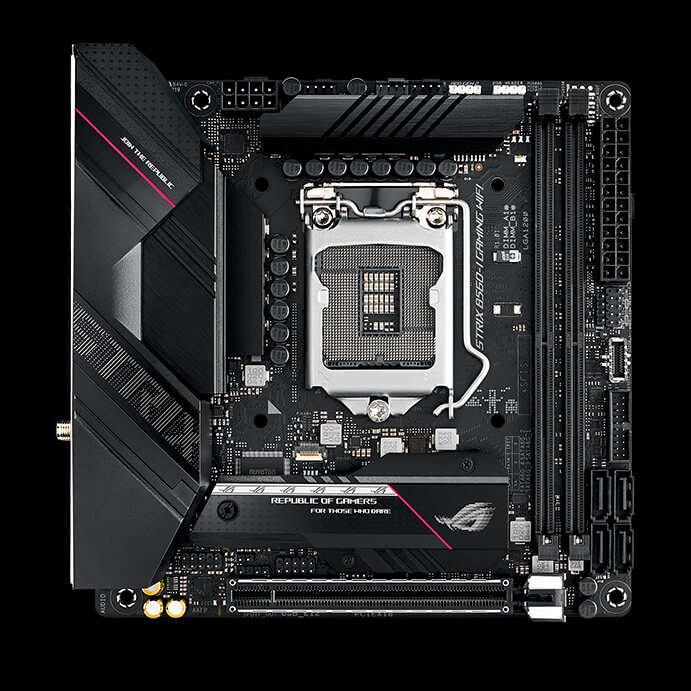

Cooler by Design
ROG Strix B560 motherboards feature comprehensive cooling options that are configurable via Fan Xpert 4 or the UEFI BIOS.
CPU Fan Header
A dedicated pair of PWM/DC fan headers for
AIO Pump Fan Header
A dedicated PWM/DC header for self-contained water-cooling setups
M.2 Heatsink
Keeps the M.2 SSD at the optimum operating temperature for consistent performance and reliability
M.2 Backplate
Provides additional mass to deal with the thermal load of high-performance M.2 drives
4-pin PWM/DC Fan Header
Each header supports auto-detection of PWM or
- Two-Way AI Noise Cancelation
- AI Networking
TWO-WAY AI NOISE CANCELATION
This utility leverages a massive deep-learning database to reduce background noise from the microphone* and incoming audio, while preserving vocals at the same time. Distracting keyboard clatter, mouse clicks and other ambient noises are intelligently neutralised so you can hear and be heard with crystal clarity while gaming or in calls.
500M
Audio
High
Minimal
COD: MW – FPS (2560 x 1440)
AI NETWORKING
The proprietary ROG GameFirst VI utility is designed to help all users — beginners, experts, and everyone in between — optimise network settings to ensure smooth online gameplay. New to this generation, GameFirst VI features AI enhanced identification and boost technology to ensure faster and smarter network optimisation.
HOW IT WORKS
Identification
GameFirst VI analyses your usage patterns and applications’ digital signatures and compares them to a database of over 200,000 apps. This database is regularly updated to ensure apps are recognized correctly.
Boost
GameFirst VI intelligent switches application priority and adjusts bandwidth accordingly depending on the situation. When gaming, it accelerates and prioritises game packets to give you supersmooth online gameplay even when you’re streaming high-quality video to your audience or transferring large files.
Visualisation
WHAT IT DOES
NETWORK INSIGHT
WIFI Quick Assist analyzes network information including real-time bandwidth use to generate a graph to give you a clear overview of current network status. On top of that, when paired with a ROG router, you can scan your WIFI network to find the best channel, as well as use Game Boost to prioritise gaming devices and packets on your network for ultrafast online speeds.
ADAPTIVE INTELLIGENCE
GameFirst VI takes note of what you’re currently doing and adjusts bandwidth accordingly to ensure smoother online experiences, even when multitasking.
GAMING FIRST MODE
Gaming First mode leverages on a massive application database and analysis of your frequently-used apps to prioritise gaming network traffic. This reduces jitter and decreases ping to give you lag-free online gaming.
ADVANCED GAMING IMMERSION
The latest connectivity features and audio enhancements propel ROG Strix B560-I gaming WiFi performance to the next level.
- Storage & Memory
- Networking
- Audio
OptiMem II
ROG Strix B560-I Gaming WiFi supports up to 64 GB DDR4 memory across two slots. OptiMem II technology improves trace layout to significantly reduce vias and crosstalk, enhancing memory stability and compatibility while giving memory kits higher frequency margins.
PCIe 4.0-Ready
ROG Strix B560-I Gaming WiFi features both a front and rear M.2 slot. The former includes a dedicated heatsink and M.2 backplate to improve cooling, and supports Gen 4 M.2 storage for sustained high-speed data performance.
*Mounting kit required for M.2 2242 SSDs.
WIFI 6 (802.11 ax)
Onboard WiFi 6 (802.11ax) supports ultrafast wireless-networking speeds, improved capacity and better performance in dense wireless environments, providing exceptional online gaming experiences. Pair your motherboard with ASUS WiFi 6 routers to fully experience the networking potential of WiFi 6.
Find out more about ASUS WiFi 6 solutions.
2.5Gb ETHERNET
Onboard 2.5Gb Ethernet gives your wired connection a boost, with up to a 2.5X improvement over standard Ethernet connections for faster file transfers, smoother lag-free gaming and high-res video streaming.
- SupremeFX
- Audio USB Type-C ®

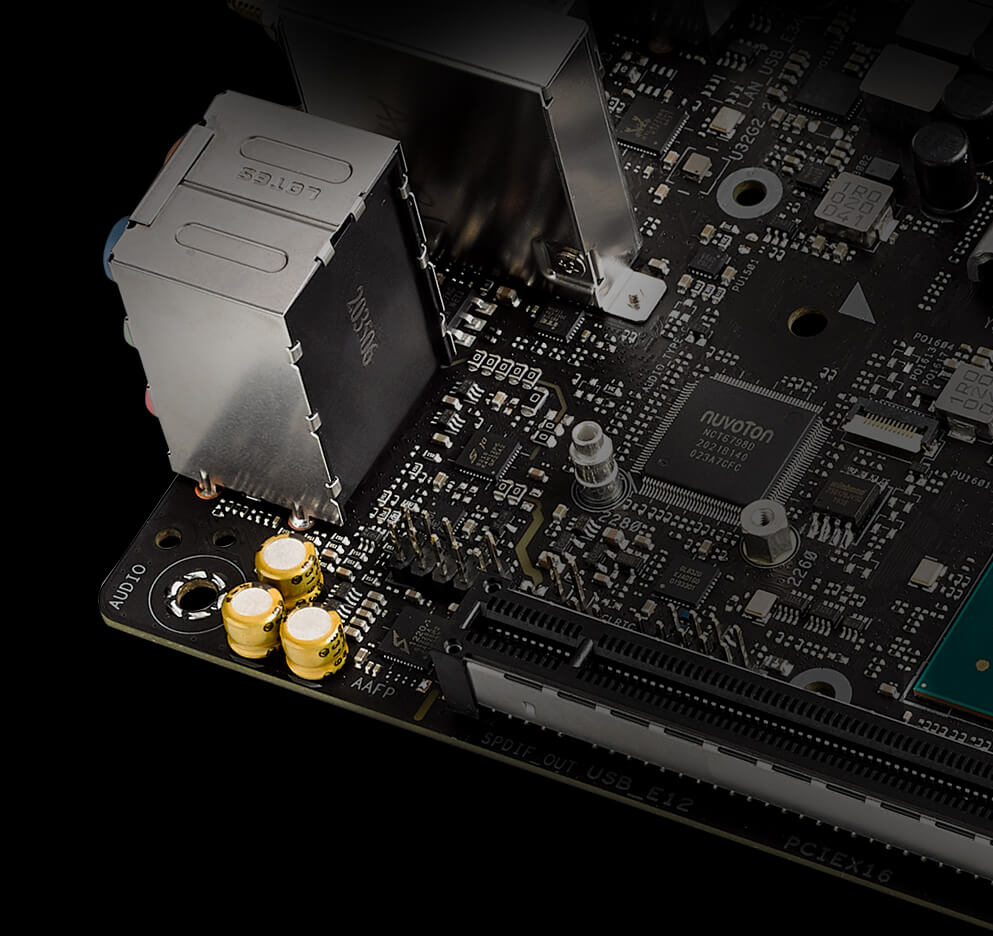

SupremeFX
Leveraging premium components together with advanced circuit layout optimisations and shielding techniques, ROG SupremeFX technology ensures pristine audio for all inputs and outputs. Front panel audio output quality is further preserved by a Savitech amplifier that’s capable of driving a diverse range of gaming headsets and high-fidelity headphones.
Exceptional RMAA Performance ASUS exclusive S1220A
Standard ALC1220
Audio-Line Shielding
Savitech SV3H712 Amplifier
Premium Nichicon™ Audio Capacitors
AUDIO USB
Dedicated onboard hardware and power filtering allow the Audio Type-C ® port to pipe crystal clear sonics to 3.5mm analogue headphones or the ROG Delta headset.

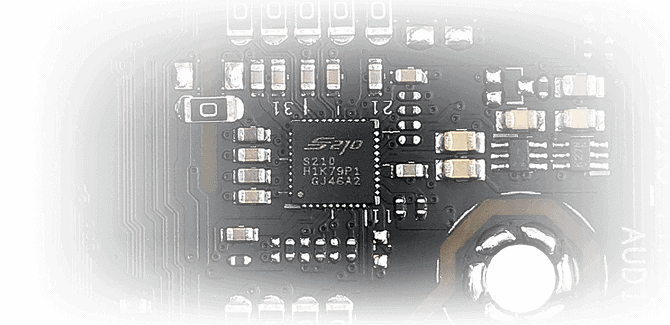

S210 INTEGRATED CHIP
The S210 control chip automatically switches the port to USB 2.0 protocol or stereo audio output for your preferred Type-C to 3.5mm converter cable.

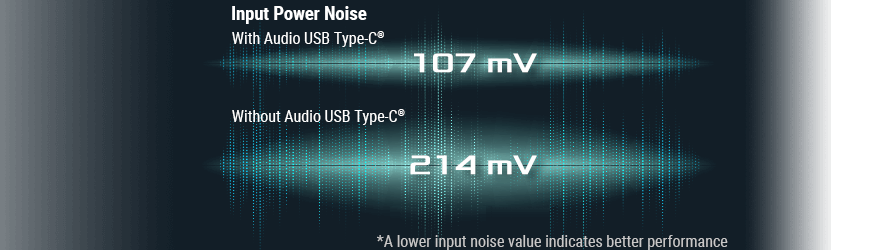

POWER NOISE-FILTER CIRCUIT
Specially-designed circuity helps reduce power-input noise to ensure consistently quiet performance from any audio source.

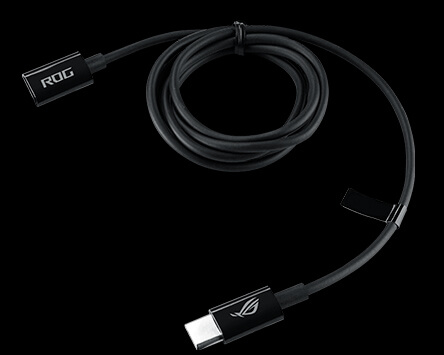

ROG AUDIO USB TYPE-C ® CABLE
The bundled extension cable can be used to conveniently tether a USB DAC or the ROG Delta headset to the Audio Type-C ® port. Alternatively, the cable can be plugged into the rear USB 3.2 Type-C port to quickly connect a high-speed drive or device.
PLAY YOUR OWN STYLE
Pair ROG Strix B560-I Gaming WiFi with other products from the diverse ROG ecosystem to create a fully customised gaming setup that reflects your personal style.
- Customization
- DIY Friendly
- Certified Compatibility
UNDENIABLY ROG STRIX
The stealthy black aesthetic of ROG Strix B560-I Gaming WiFi is complemented by a glitch effect ROG logo on the M.2 heatsink cover and Strix nameplate on the I/O shroud for an
M.2 Q-Latch
The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the drive and neatly eliminate traditional screws.
BIOS FlashBack™
BIOS FlashBack™ is the simplest and safest way to update BIOS. Simply drop the (UEFI) BIOS file onto a FAT32 formatted USB stick, and plug it into the USB BIOS FlashBack port and press the button. Updates can even be performed without having memory or a CPU installed.
Q-LEDS
Four onboard LEDs indicate power status, and any problem with the CPU, memory, graphics card or boot device for quick diagnosis.
PRE-MOUNTED I/O SHIELD
The patented ROG I/O shield is finished in sleek matte black and comes pre-mounted, which further simplifies the process of installing the motherboard.
CERTIFIED COMPATIBILITY
ROG Strix motherboards undergo an extensive certification program to ensure compatibility with the widest range of components and devices. Our Qualified Vendor list (QVL) provides a reference for identifying guaranteed-compatible components and memory.
The ROG Strix Ecosystem Awaits
Level up your game with ROG Strix. Enjoy complementary aesthetics, control and compatibility across AIO coolers, cases, peripherals, and much more. ROG offers more choices than any other brand.
ROG Gives You More
ROG-exclusive firmware and software utilities deliver intuitive tuning options that help get the most from your gaming build. To further aid system setup and performance tuning, the highly acclaimed AIDA64 utility has also been added to the mix.
- Optimisation
- Audio Effect
- AIDA64
- Armoury Crate
- RAMCache III
The TurboV Processing Unit (TPU) provides AI Suite 3 with the intelligence needed to automatically fine-tune voltages, monitor system stats, and adjust overclocking settings.
The Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.
Fan Expert 4 provides comprehensive control over fans, water pumps and all-in-one (AIO) coolers. Control is also possible via the award-winning ROG UEFI. Whether you’re cooling with air or water, Auto-Tuning mode intelligently configures all parameters with a single click. There’s also an Extreme Quiet mode, which reduces all fan speeds to below the default minimum — keeping your system whisper-quiet when performing light tasks.
The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, allowing you to switch frequency and power-efficiency settings so you can fine-tune CPU voltage regulation for ultimate stability and performance.
This intuitive tool allows you to define CPU overclocking, apply fan profiles, prioritize network data and optimize audio settings at app level ― so your system is perfectly optimized for whatever you’re doing.
UEFI BIOS
The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as comprehensive features for seasoned veterans.
- Advanced Mode
- EZ Mode
When you’re ready for a deeper dive into the configuration of your system, delve into the UEFI’s Advanced mode and take complete control. Each section is intuitively organised, and a built-in search feature makes it easy to find the options you need. Advanced functions are coded with the intelligence to adapt to your settings, and when you’re ready to take charge, parameters have the granularity to dial in performance just the way you want.
Prediction
AI OC monitors system vitals like temperatures, fan speeds, and power draw to estimate overclocking performance.
My Favorites
Quickly find tuning options and add preferred tools to the list.
EZ Flash 3
Flash the latest BIOS via the internet from within the BIOS.
AI OC Guide
The AI OC Guide allows you to enable the AI Optimization or view a quick guide.
SMART
Check your storages devices’ Self-Monitoring, Analysis, and Reporting Technology logs to gauge reliability and to identify potential failures.
GPU POST
Automatically detect selected ASUS graphics cards to view detailed information.
Secure Erase
Restore your SSDs to factory-fresh condition.
Last Modified Log
Track the latest changes and save preferred profiles onto a USB drive.
SATA Port Renaming
Rename SATA ports for easy identification.
Search Function
Quickly and easily find the option or setting you’re looking for.
ASUS User Profile
Port configuration settings between different BIOS versions or share them with friends.
Designed to simplify setup, EZ mode presents all the vital settings and stats on a single page. With guided wizards, drag-and-drop functionality, and one-click application of important settings, your rig will be up and running in no time.
My Favorites
Quickly find tuning options and add preferred tools to the list.
EZ Flash 3
Flash the latest BIOS from within the BIOS.
SMART
Check your storage device Self-Monitoring, Analysis, and Reporting Technology logs to gauge reliability and identify potential failures.
Secure Erase
Restore your SSDs and NVMe storage to factory settings.
Last Modified Log
Track the last change and save preferred profiles to a USB drive.
SATA Port Renaming
Rename SATA ports for easy identification.
User Profile
Port configuration settings between different BIOS versions or share them with friends.
Q-Fan Control
Configure the fan’s operating speed manually or use pre-configured fan profiles to quickly select Standard, Silent, Turbo or Full Speed modes. By default, system fans will automatically switch to full speed if the temperature reaches 75°C.
- Sonic Studio III
- DTS Sound Unbound
Sonic Studio III
ROG Sonic Studio supports HRTF-based (head-related transfer function*) virtual surround for VR headsets, casting an immersive aural landscape that draws you deeper into the action. The intuitive Sonic Studio interface also offers a range of EQ options and one-click presets, allowing you to tailor acoustics to suit personal preferences or the characteristics of your headset.
SONIC STUDIO LINK
The new Sonic Studio Link allows you to apply effects on all playback devices. Simply press the Sonic Studio Link button to enjoy the effect on any connected device.
APP-SPECIFIC PROFILES
Apply customised audio settings to various applications, so that each is perfectly tuned to the way you want to listen.
SONIC STUDIO VIRTUAL MIXER
Combine audio output from selected apps with audio from the microphone input and stream the compiled mix.
*A head-related transfer function is an audio algorithm derived from sound data recorded through a dummy head. Test tones are played from a spherical grid around the dummy head to obtain subtle changes in sounds that come from different directions. The results are combined into an algorithm that allows Sonic Studio’s virtual surround to process audio that’s true to life.
DTS: Sound Unbound
ROG Strix B560 motherboards are pre-loaded with the DTS ® Sound Unbound™ app that envelops you in audio as never before, conjuring whole new levels of immersion for extraordinary gaming and entertainment experiences. By leveraging Windows Sonic spatial technology, DTS Sound Unbound delivers audio in a virtual 3D space — putting you right in the middle of the soundscape, where you can sense the location and direction of every gunshot, footstep or other sound in your virtual environment.
* DTS Sound Unbound requires in-game support. Check with game developers for supported titles.
STEREO SOUND
Discrete left and right audio channels enable headphone or two-speaker setup.
SURROUND SOUND
Audio is split and served over multiple speaker channels – e.g., 5.1 or 7.1 – to create an enveloping experience on a single, logical plane.

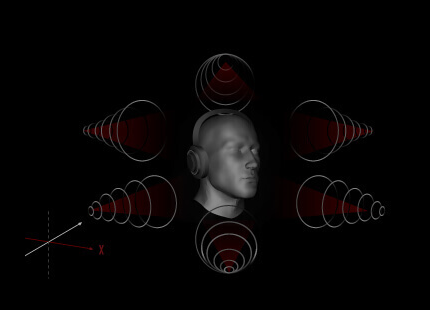

SPATIAL SOUND
A virtual audio ‘sphere’ effect creates astonishing 360° immersion – with you at the center, where sounds seem to travel in all directions.
AIDA64
ROG Strix B560 motherboards include a 60-day AIDA64 Extreme subscription. This industry-leading system information tool provides detailed information about installed hardware and software, and it also provides benchmarks for measuring performance of the entire system or individual components. AIDA64 Extreme includes a monitoring and diagnostics feature to detect and prevent hardware issues. All vital system sensors can be tracked in real time, allowing voltage readings, fan speeds, and temperature information to be displayed on the desktop or sent to dedicated displays or to the LCD panels of ROG AIO liquid coolers*.
*Support available for ROG Ryujin II and later models.
- ROG X AIDA64 Extreme
- Hardware Monitor Display
Armoury Crate
Armoury Crate is a software utility designed to give you centralised control of supported gaming products, making it easy to tune the look and feel of your system. From a single intuitive interface, Armoury Crate lets you easily customize RGB lighting and effects for compatible devices and synchronise them with Aura Sync to create a unified lighting scheme across your system. You can also use Armoury Crate to download drivers, software and the user manual. In addition, Armoury Crate features a dedicated product registration page as well as a news feed to help you stay in touch with the gaming community.
*Windows 10 required for full Aura Sync functionality within Armoury Crate. For Windows 8 and earlier versions, standalone Aura Sync software is available for free download from the product support site.
- Aura Sync
- Device configuration
- Driver & Manual download
- Gaming highlight
- Account management
RAMCache III
RAMCache III software turns milliseconds into microseconds to boost game-load times. Fully compatible with the latest NVM Express ® storage options, its uniquely intelligent technology effectively caches an entire storage device so that favorite games and apps launch at breakneck speeds.
The intuitive interface displays real-time drive information, such as current read/write speeds.
A memory check provides a quick overview of the health status of assigned memory.
A Smart mode automatically caches all storage devices to maximise system resources.
ROG STRIX B560-I GAMING WIFI
** Intel ® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Memory
5333(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel ® Extreme Memory Profile (XMP)
* 10th Gen Intel ® i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.
* 11th Gen Intel ® processors support 3200/2933/2800/2666/2400/2133 natively.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
Graphics
1 x DisplayPort 1.4**
* Graphics specifications may vary between CPU types.
**Only Intel ® 11th processors support DisplayPort 1.4 with max. resolution of 5120 x 2880 @60Hz, others will only support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any updates
*** Only Intel ® 11th processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz .Please refer to www.intel.com for any updates.
Expansion Slots
Intel ® 11th &10th Gen Processors*
1 x PCIe 4.0/3.0 x16 slot(s)**
– Intel ® 11th processors support PCIe 4.0 x16
– Intel ® 10th processors support PCIe 3.0 x16
Storage
Intel ® 11th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280
– Only Intel ® 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs
Intel ® B560 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
To enable Intel ® Optane™ Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel ® Rapid Storage Technology.
USB
Rear USB: Total 8 ports
1 x USB 3.2 Gen 2×2 port(s) (1 x USB Type-C®)
1 x USB 3.2 Gen 2 port(s) (1 x Type-A)
6 x USB 2.0 port(s) (5 x Type-A, 1 x audio USB Type-C®)
1 x USB 3.2 Gen 2 connector(s) (support(s) USB Type-C®)
1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header(s) support(s) additional 2 USB 2.0 ports
Audio
“ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A*
– Impedance sense for front and rear headphone outputs
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
– Supports up to 32-Bit/192 kHz playback*”
Audio Features
– SupremeFX Shielding Technology
– Savitech SV3H712 AMP
– Rear audio USB Type-C® port
– Premium Japanese audio capacitors
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
Back Panel I/O Ports
1 x USB 3.2 Gen 2×2 port(s) (1 x USB Type-C®)
1 x USB 3.2 Gen 2 port(s) (1 x Type-A)
6 x USB 2.0 port(s) (5 x Type-A, 1 x Audio USB Type-C®)
1 x DisplayPort
1 x ASUS Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header(s)
1 x 4-pin AIO Pump header(s)
1 x 4-pin Chassis Fan header(s)
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (support(s) USB Type-C®)
1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header(s) support(s) additional 2 USB 2.0 ports
Miscellaneous
1 x AURA Addressable Gen 2 header(s)
1 x AURA RGB header(s)
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x 10-1 pin System Panel header
Special Features
Extreme Engine Digi+
– 5K Black Metallic Capacitors
ASUS Q-Design
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
ASUS Thermal Solution
– M.2 heatsink backplate
ASUS EZ DIY
– Pre-mounted I/O shield
AURA Sync
– AURA RGB header(s)
– Addressable Gen 2 RGB header(s)
Software Features
ROG Exclusive Software
– Sonic Studio III + Sonic Studio Virtual Mixer
– Sonic Radar III
– DTS® Sound Unbound
ASUS Exclusive Software
– AIDA64 Extreme (60 days free trial)
– Two-Way AI Noise Cancelation
– Performance And Power Saving Utility
Norton Anti-virus software (Free Trial version)
UEFI BIOS
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Manageability
Accessories
Cables
1 x ROG audio USB Type-C ® cable
2 x SATA 6Gb/s cables
1 x ROG USB2.0 splitter cable
1 x Panel cable
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
2 x M.2 SSD screw package(s)
1 x ROG key chain
1 x ROG Strix stickers
1 x ROG Strix thank you card
Installation Media
1 x Support DVD
Documentation
1 x User manual
Operating System
Windows 10 64bit
Form Factor
17cm x 17cm
ASUS estore price starting at
The lowest price from 30 days before the promotion:
- ROG STRIX B560-I GAMING WIFI
- The product (electrical , electronic equipment, Mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.
- The use of trademark symbol (TM, ®) appears on this website means that the word text, trademarks, logos or slogans, is being used as trademark under common laws protection and/or registered as Trademark in U.S. and/or other country/region.
- WiFi 6E availability and features are dependent on regulatory limitations and co-existence with 5 GHz WiFi.
- The terms HDMI and HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
- Learn more about battery usage, removal, replacement, and related safety guidelines at: https://www.asus.com/support/faq/1005740/ **Product specifications and battery design may vary depending on the model. For any questions, please contact ASUS official customer service.
- Products certified by the Federal Communications Commission and Industry Canada will be distributed in the United States and Canada. Please visit the ASUS USA and ASUS Canada websites for information about locally available products.
- All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
- Specifications and features vary by model, and all images are illustrative. Please refer to specification pages for full details.
- PCB color and bundled software versions are subject to change without notice.
- Brand and product names mentioned are trademarks of their respective companies.
- Unless otherwise stated, all performance claims are based on theoretical performance. Actual figures may vary in real-world situations.
- The actual transfer speed of USB 3.0, 3.1, 3.2, and/or Type-C will vary depending on many factors including the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment.
- Gaming Motherboards
- Motherboards Filter
- ROG STRIX B560-I GAMING WIFI
Get the latest deals and more Enter email address
Please enter a valid email address.
- Privacy Policy
- Terms of Use Notice
©ASUSTeK Computer Inc. All rights reserved.
https://rog.asus.com/uk/motherboards/rog-strix/rog-strix-b560-i-gaming-wifi-model/https://rog.asus.com/motherboards/rog-strix/rog-strix-b560-i-gaming-wifi-model/spec/
